SYNC_GATINC_CIRCUIT

Published:2009/6/19 2:36:00 Author:May | From:SeekIC

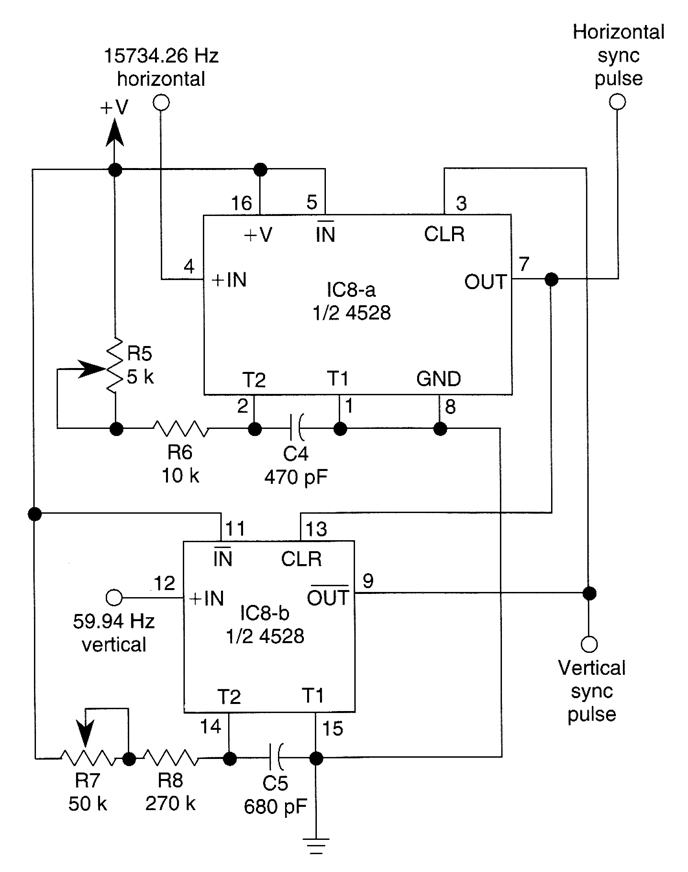

This circuit guarantees that only one type of sync pulse is generated at a time. During vertical sync periods, horizontal sync is disabled.
