RF_PROBE_FOR_VOM

Published:2009/6/25 4:09:00 Author:Jessie | From:SeekIC

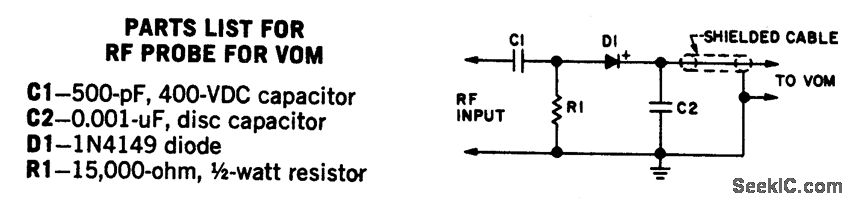

This probe makes possible relative measurements of rf voltages to 200 MHz on a 20,000 ohms-per-volt multimeter．Rf voltage must not exceed the breakdown rating of the IN4149-approximately 100 V.
