MC68HC5Pl-Communication single-chip microcomputer integrated circuit diagram

Published:2011/7/10 2:44:00 Author:leo | Keyword: Communication, single-chip | From:SeekIC

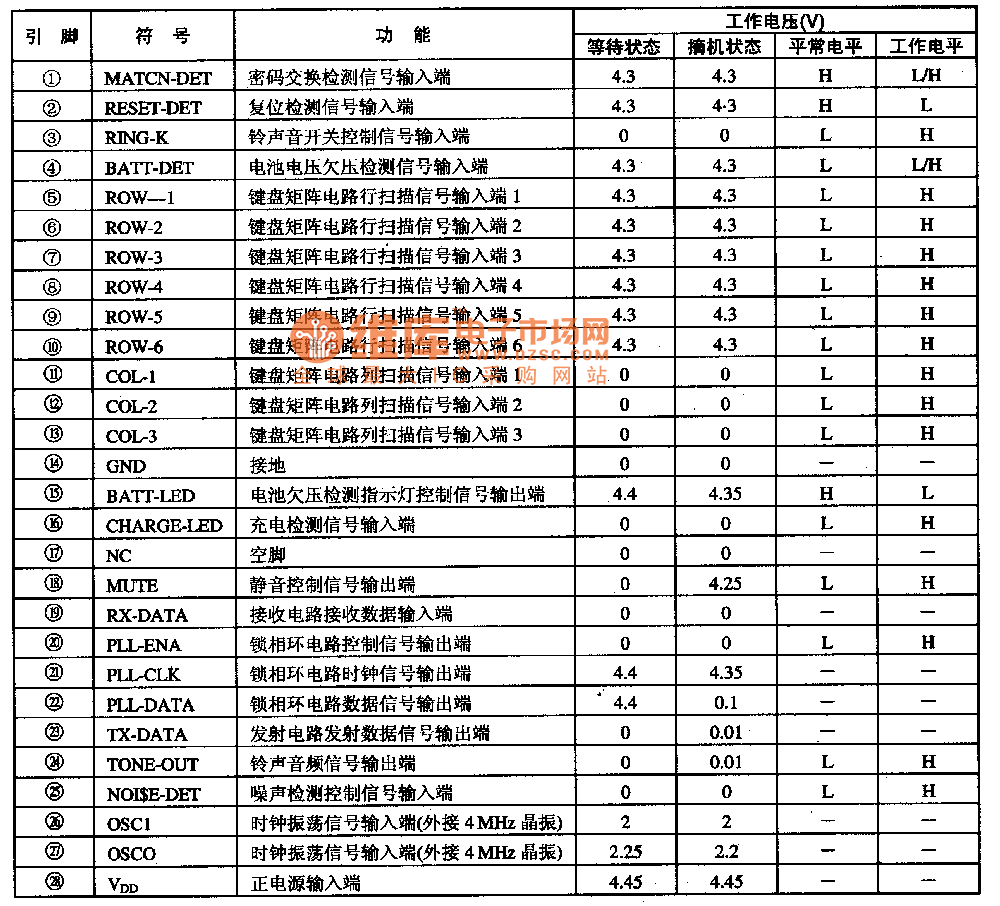

MC68HC5PI is a kind of communication single-chip microcomputer integrated circuit made by Motorola which can be applied in wireless telephone and is used as control chip in cell phone. 1.Function Feature:The integrated circuit MC68HC5PI is a type of chip which uses CMOSCPU as the core chip and has 16-bit input capturing and output comparing timers, serial peripheral interface, serial communication interface, 416OKB ROM, 24 double action I/O and can carry out the function of generating dual-tone multifrequency signals, coding data signals and pulsing dialing signals that that can be used to memory code information and so on. 2.Pin Function and dataMC68HC5PI is always used together with MC68HCO5C4（MC68HCO54P) as a microcomputer of the cell phone. All pins function and data of the integrated circuit are shown in the picture bellow.
