Digital counter demonstration circuit

Published:2011/4/12 22:01:00 Author:Nicole | Keyword: digital counter | From:SeekIC

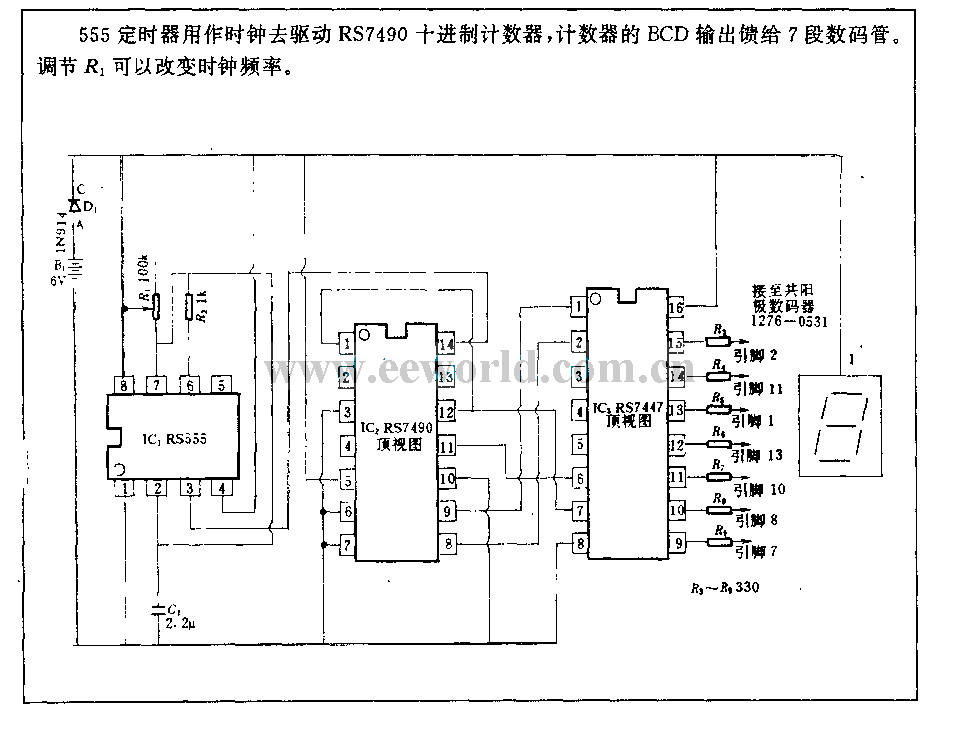

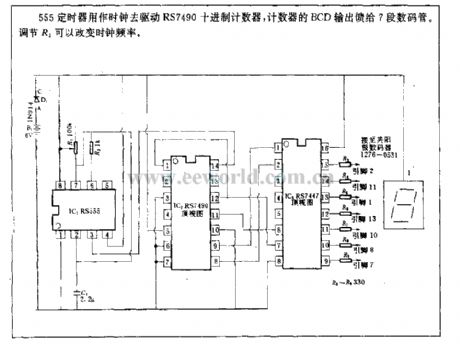

555 timer is used as clock to drive RS7490 decimal timer, BCD output to 7 section LED. To adjust R1 can change the clock frequency.
