DUAL_ASTABLE_MULTIVIBRATOR

Published:2009/6/26 2:02:00 Author:May | From:SeekIC

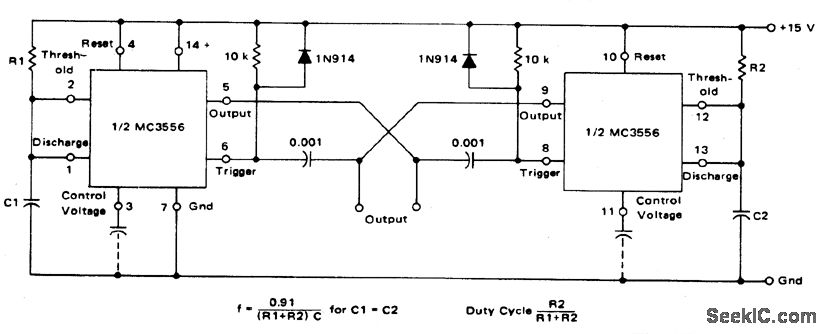

This dual astable multivibrator provides versatility not available with single timer circuits. The duty cycle can be adjusted from 5% to 95%. The two outputs provide two phase clock signals often required in digital systems.It can also be inhibited by use of either reset terminal.
