DOOR_CHIMES_DELAY

Published:2009/6/25 21:06:00 Author:Jessie | From:SeekIC

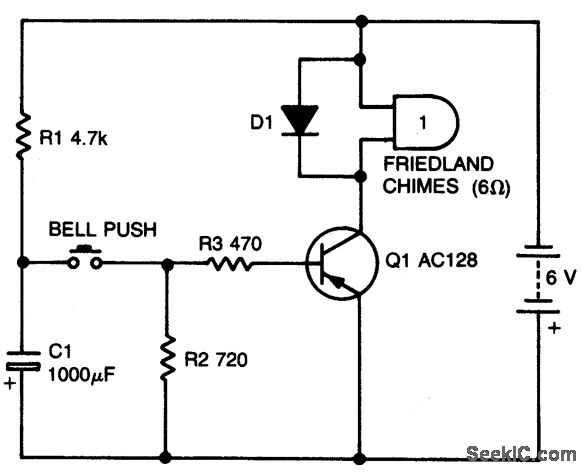

Circuit NotesWith values shown, this simple circuit will permit one operation every 10 seconds or so.Capacitor C1 charges through RI when the button is released. Making RI larger crease the delay.
