2PULSE_WIDTH_MODULATOR

Published:2009/6/25 22:10:00 Author:May | From:SeekIC

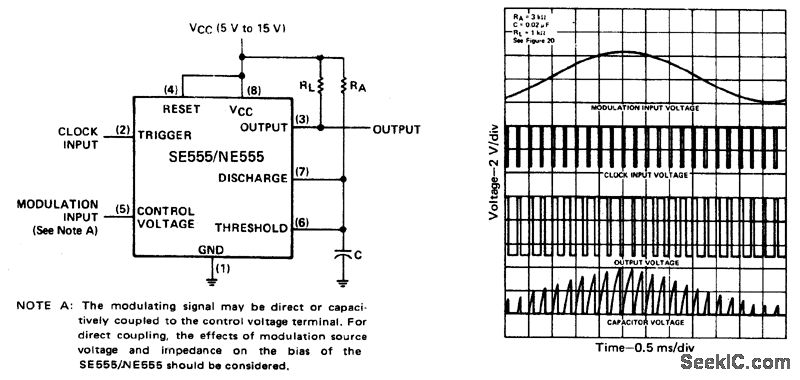

The monostable circuit is triggered by a continuous input pulse train and the threshold voltage is modulated by a control signal. The resultant effect is a modulation of the output pulse width, as shown. A sine-wave modulation signal is illustrated, but any wave-shape could be used.
