100_KHz_CRYSTAL_CALIBRATOR

Published:2009/7/10 2:27:00 Author:May | From:SeekIC

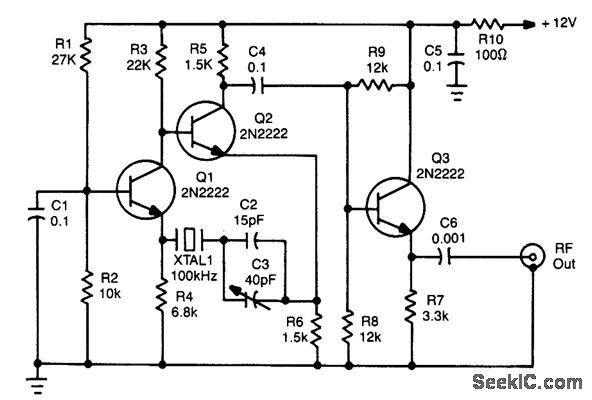

Using a 12-V supply, this crystal calibrator should prove a useful accessory for a SW receiver. Q1 and Q2 form an oscillator and Q3 is a buffer amp.
