D-FLIP/FLOP ONE SHOT CIRCUITS

Published:2012/9/9 20:32:00 Author:Ecco | Keyword: D-FLIP/FLOP, ONE SHOT CIRCUITS | From:SeekIC

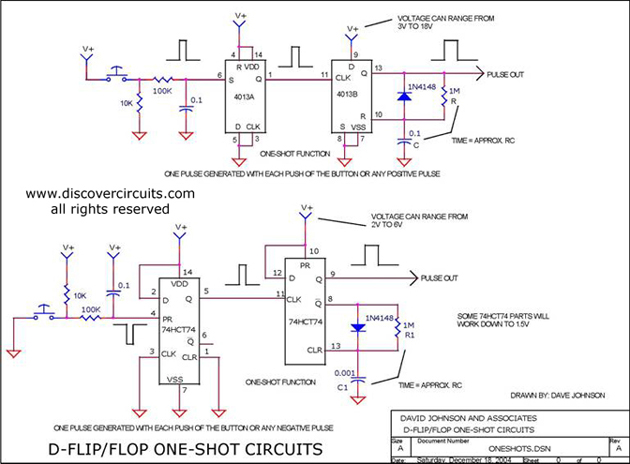

Yes you can use cheap D flip/flop logic circuits as nice one-shot pulse generators. This schematic shows how the popular CD4013 and the CD74HC74 can be used to generate pulses ranging from nanoseconds to seconds. Source: discovercircuits
