DUAL_FUNCTION_BISTABLE_SCRAM

Published:2009/7/13 1:19:00 Author:May | From:SeekIC

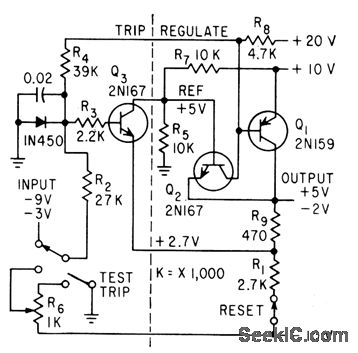

Porlion at right of dotted lines acts as regulator that holds constant voltage on output circuit until tripping of control rods is called for by nuclear radiation detector.Outputs of bistable circuits are connected through and gates so that, if desired, two input signals are necessary before trip signcd is generated. Malfunction in ion chambers or failure of circuit component can make reactor exceed maximum critical assembly condition and generate trip signal that drops control rods.-E. J.Wade and D.S. Davidson, How Transistor Circuits Protect Atomic Reactors, EJectronics, 31:29,73-75.
