DUAL_DELAY

Published:2009/7/14 21:37:00 Author:May | From:SeekIC

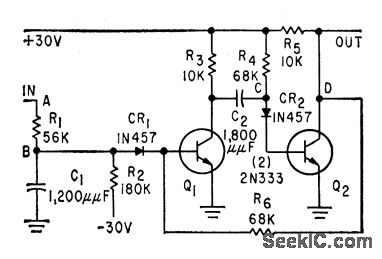

Two-transistor circuit produces pulses of finite width that start finite lime after reference pulse. Initial delay is determined by R1-R2-C1 and pulse width by C2-R4.-H. P. Brockman, Circuit Provides Dual Delay, Electronics, 32:18, p 62-65.
