DSM-872 Typical application circuit 2

Published:2011/11/8 21:35:00 Author:Ecco | Keyword: Typical application | From:SeekIC

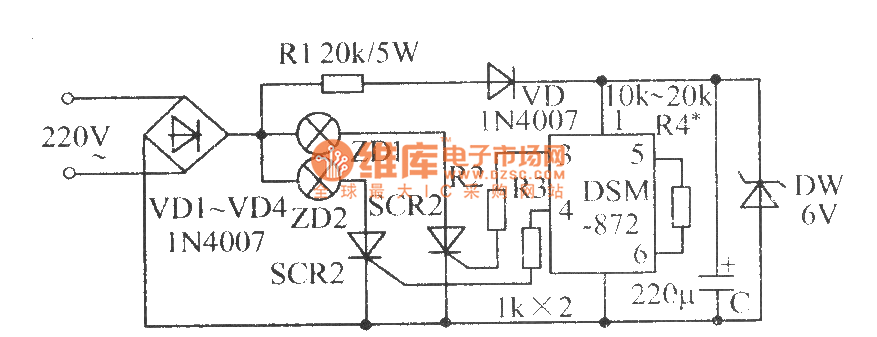

As shown in the chart, due to 3,4 feet output alternately high and low, SCR1 and SCR2 turnand two bulbs flash alternately.
