DSM-872 Typical application circuit 1

Published:2011/11/8 21:33:00 Author:Ecco | Keyword: Typical application | From:SeekIC

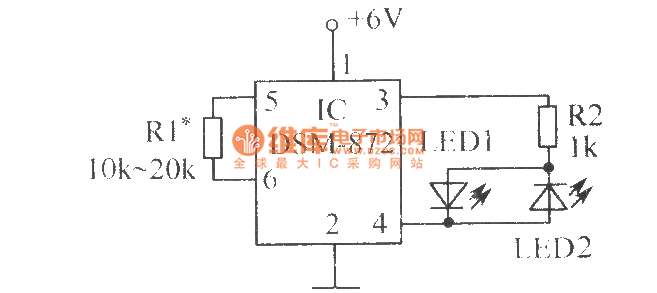

As shown in the chart, when the IC's 3,4 feet are alternatinghigh , low , thelight-emitting diodes LED1 and LED2emit light alternately.
