DSB_BALANCED_MODULATOR

Published:2009/7/6 22:33:00 Author:May | From:SeekIC

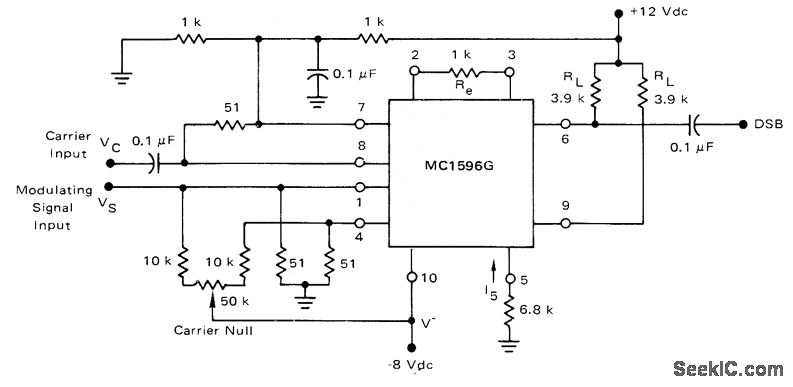

Provides excellent gain and carrier suppression by operating upper (carrier) differential amplifiers of Motorola MC1596G balanced modulator at saturated level and lower differential amplifier in linear mode. Recommended input levels are 60 m VRMS for carrier and 300 m VRMS maximum for modulating signal.-R. Hejhall, Input MC1596 Balanced Modulator, Motorola, Phoenix, AZ, 1975, AN-531, p 3.
