DOUBLING_200_MHz

Published:2009/7/4 21:30:00 Author:May | From:SeekIC

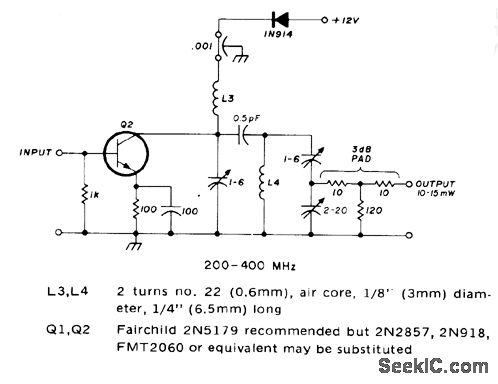

Recommended for use with VHF/UHF converters having inptuts of 180 to 220 MHz, with 5-10 mW output. Diode in series with power supply prevents damage if polarity is reversed.-J. Reisert, VHF/UHF Techniques, Ham Radio, March 1976, p 44-48.
