DOUBLING_150_MHz

Published:2009/7/4 21:43:00 Author:May | From:SeekIC

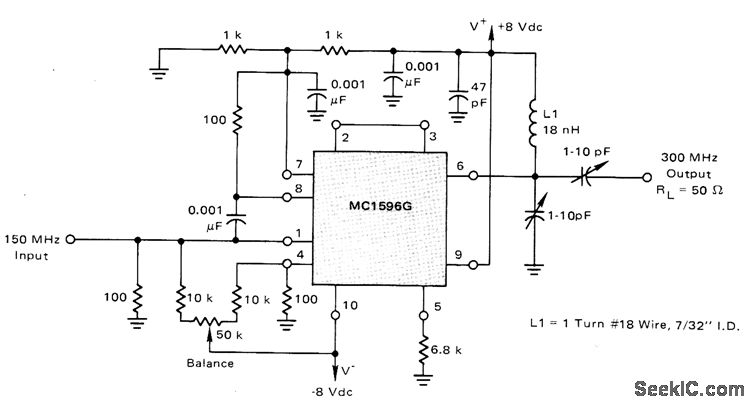

Motorola MC1596G balanced modulator is connected for doubling at RF and UHF.With output filtering shown,all spurious outputs are at least 20 dB below desired 300-MHz output. Suppression of spurious outputs is poorer for higher input frequencies,being only 7 dB down for 400-MHz output, but performance is still superior to that of conventional transistor doubler.-R. Hejhall, MC1596 Balanced Modulator, Motorola, Phoenix, AZ, 1975, AN-531, p 10.
