DOUBLING_100_MHz

Published:2009/7/5 20:35:00 Author:May | From:SeekIC

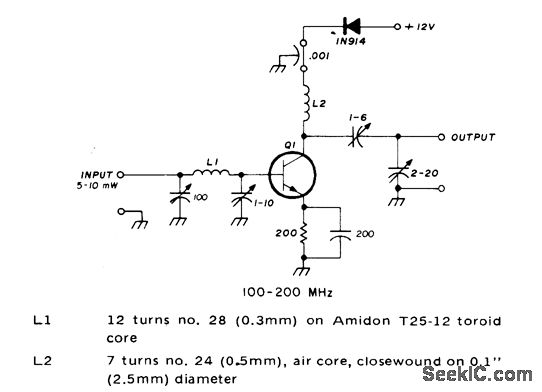

Recommended for use with VHF/UHF converters having inputs of 90 to120 MHz .Diode in series with power suρply prevents damage if the polarity is reversed.－J.Reiset, VHF/UHF Techniques,Ham Radio, March 1976,p 44－48.
