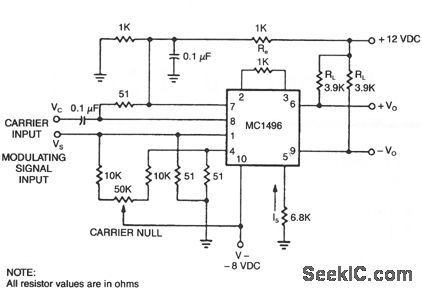

DOUBLE_SIDEBAND_SUPPRESSED_CARRIER_MODULATOR

Published:2009/7/8 4:41:00 Author:May | From:SeekIC

The basic current allows no carrier to be present in the output. By adding offsets to the carrier differential pairs, controlled amounts of carrier appear at the output. The amplitude becomes a function of the modulation signal-AM modulation.
