DOUBLE_INTEGRATOR

Published:2009/7/16 4:06:00 Author:Jessie | From:SeekIC

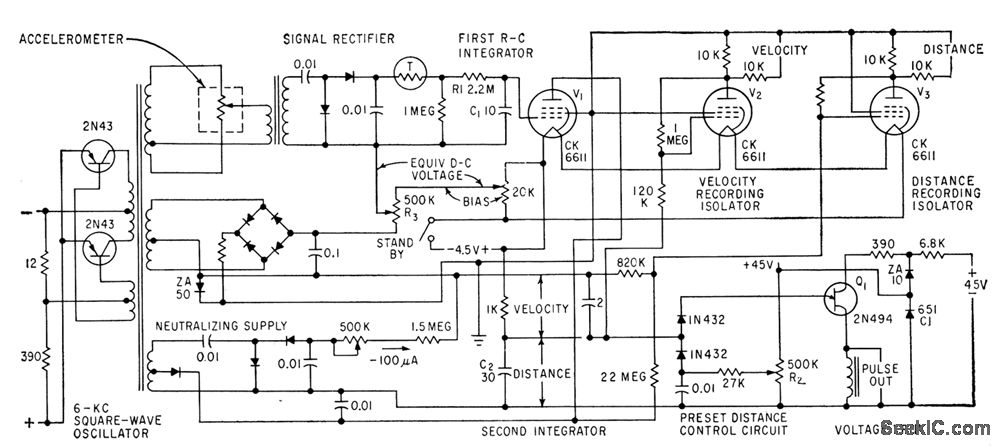

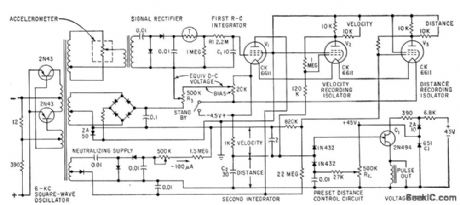

Used to measures distances up to 150 feet, from information supplied by slide-wire accelerometer. Transistor operates as voltage trip, providing output pulse when distance reaches preset value. Two other tubes provide velocity and distance information for recorder.-T. R. Nisbet, Double Integrator Finds Distance, Electronics, 32:21, p 64-66.
