DOUBLE_COUPLED_MAIN_GATE_MVBR

Published:2009/7/16 12:37:00 Author:Jessie | From:SeekIC

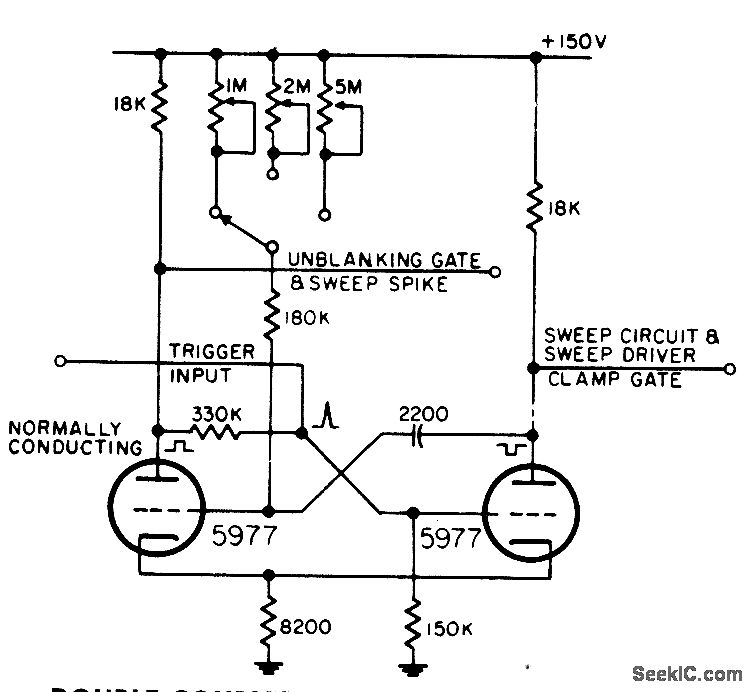

Uses both cathode and plate-to-grid coupling, with gate length changed by switching of potentiometers. Used in radar to provide gate during which display sweep is generated, along with gates for waveforms that must be coincident with display sweep.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N10-3.
