DOUBLERS_AND_TRIPLER

Published:2009/7/15 2:38:00 Author:Jessie | From:SeekIC

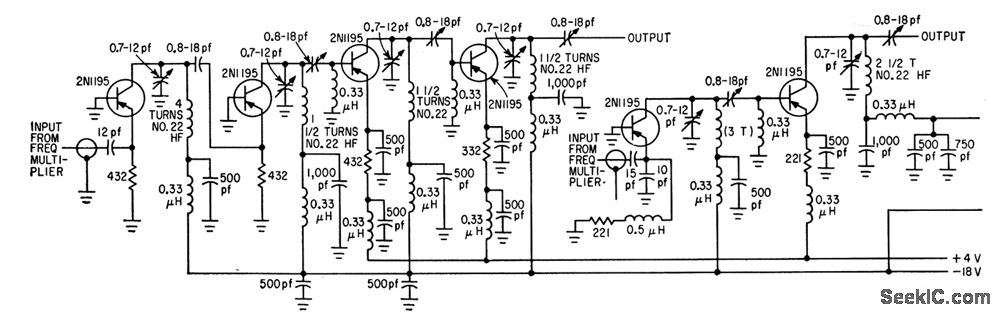

In left section, first two stages are class B common-base power doublers and last two AB common-emitter amplifiers. Output is 150 mw at 216 Mc input. In section at right, common-base class B power tripler drives common-emitter output amplifier to give 140 mw output at 162 Mc from 54-Mc input.-J.W. Hamblen and J. B. Oakes, Instrumentation and Telemetry of Transit Navigational Satellites,Electronics,34:32, p 148-153.
