DMAl2 function diagram

Published:2011/4/10 20:13:00 Author:may | Keyword: function | From:SeekIC

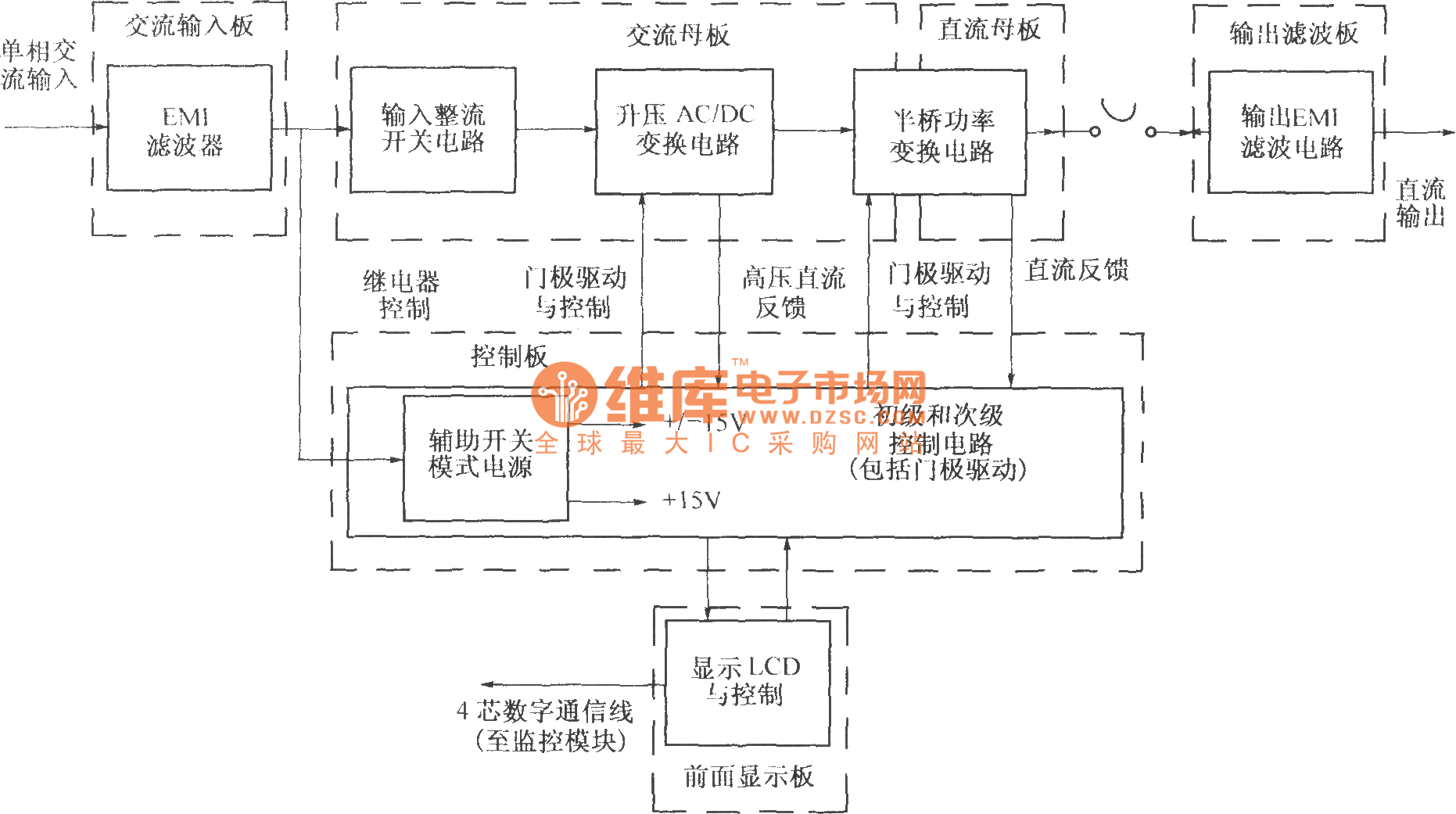

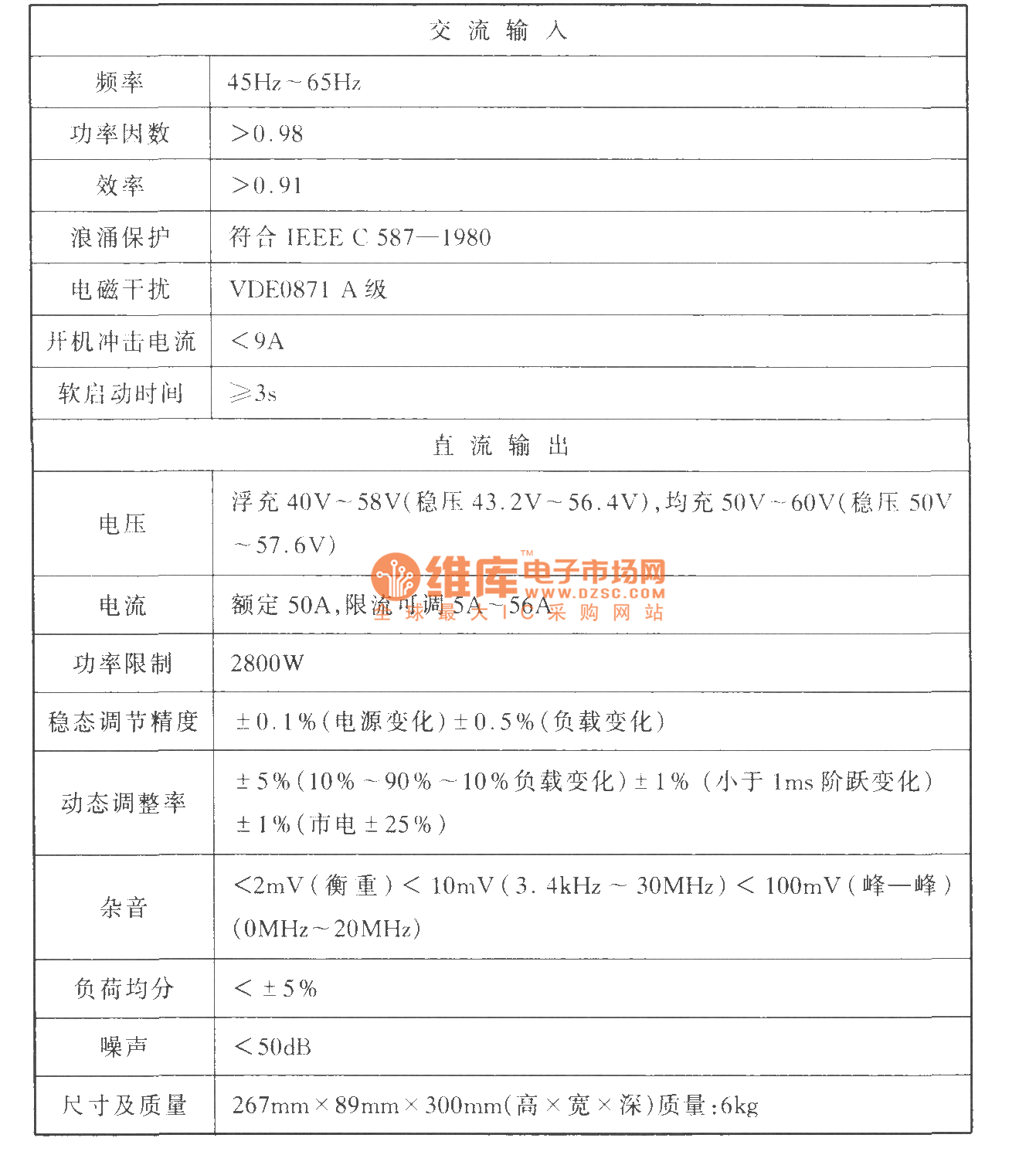

Compare to DMA10 type rectification module, the selection of working frequency and the topological structure of power inversion of DMA12 type rectification module is the same. The difference is, DMA12 using the compensation mode of single phase active boost power factor and natural cooling, and using the technique of non loss absorption. The diagram is its function diagram. The capacity of DMA12 type rectification module’s 48V power-supply system is 50A. The canonical system now is DUM23 series integrated power supply system. The technical target of 48V/50A rectification module is shown in the following table:
