DIVIDING_FOR_SYMMETRY

Published:2009/7/1 20:03:00 Author:May | From:SeekIC

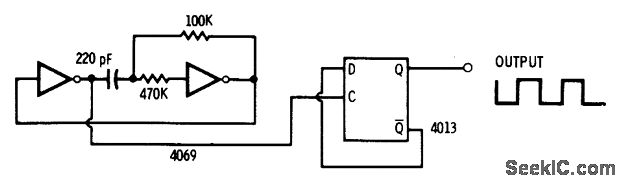

4013 dual D flip-flop is used as binary divider at output of astable MVBR to give 50/50 symmetry for output frequency half that of MVBR.-D. Lancaster, CMOS Cookbook, Howard VV. Sams, Indianapolis, IN, 1977, p 232-234.
