DIVIDER_ELIMINATES_COUNT_STARTING_JITTER

Published:2009/7/14 21:45:00 Author:Jessie | From:SeekIC

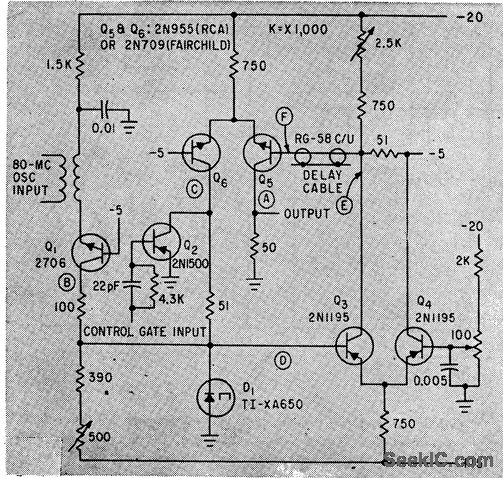

Output of 80-Mc free-running crystal oscillator is divided by 8 to give 10-Mc time base that is almost perfect square wave.-W.O. LeCroy, Jr., Eliminating One-Count Uncertainty in Cycle-Counting Interval Timers, Electronics, 35:29, p 46-47.
