DIFFERENTIAL_MVBR_INVERTER

Published:2009/7/15 22:45:00 Author:Jessie | From:SeekIC

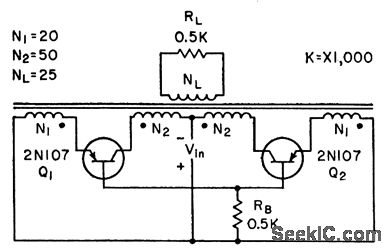

Magnetic inverter circuit with differentially connected windings oscillates reliably without use of current bias. Small spike in square-wave output can be eliminated by connecting small capacitor between collector and emitter of each transistor.-C. H. R. Campling, Magnetic Inverter Uses Tubes or Transistors, Electronics, 31;11, p 158-16l.
