DIFFERENTIAL_CAPACITANCE_MEASUREMENT_CIRCUIT

Published:2009/7/7 3:25:00 Author:May | From:SeekIC

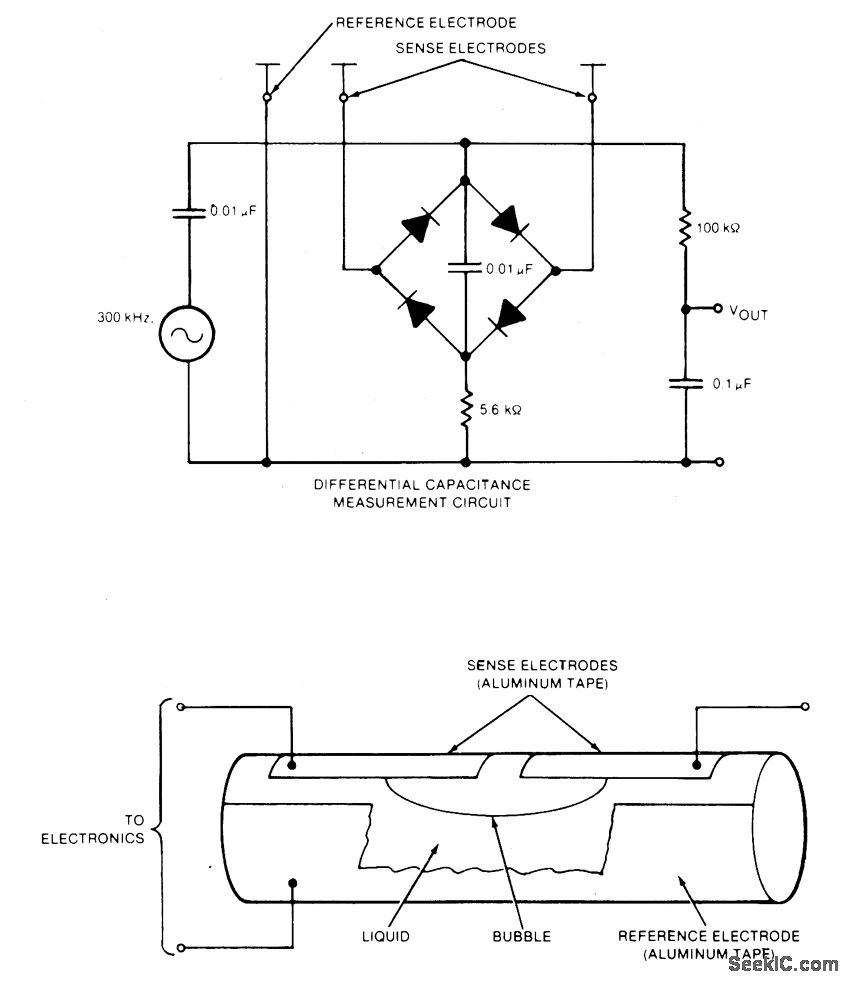

A bubble vial with external aluminum-foil electrodes is the sensing element for a simple indicating tiltmeter. To measure bubble displacement, a bridge circuit detects the difference in capacitance between the two sensing electrodes and the reference electrode. Using this circuit, a tiltmeter level vial with 2 mm deflection for 5 arc-seconds of tilt easily resolves 0.05 arc-second. The four diodes are CA3039, or equivalent.
