DELAY_MULTIPLIER

Published:2009/7/14 23:48:00 Author:Jessie | From:SeekIC

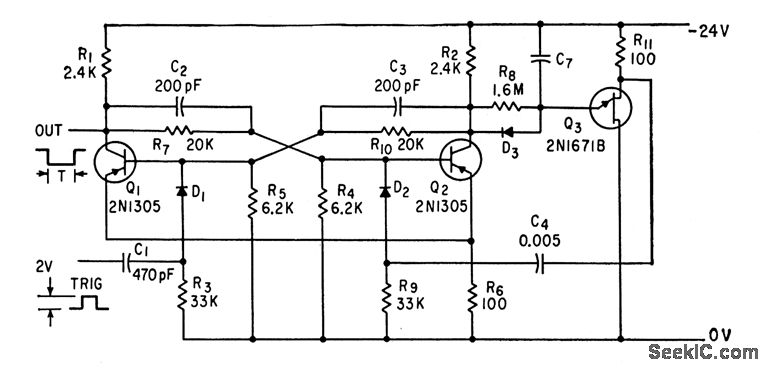

Addition of silicon unijunction transistor Q3 to conventional mono stable mvbr expands time delay two orders of magnitude.-M. P. Humblet, Unijunction Transistor Multiplies Monostable 's Pulsewidth, Electronics, 35:26, p 74-75.
