DELAYED_DROPOUT_RELAY_TIMER

Published:2009/7/15 3:25:00 Author:Jessie | From:SeekIC

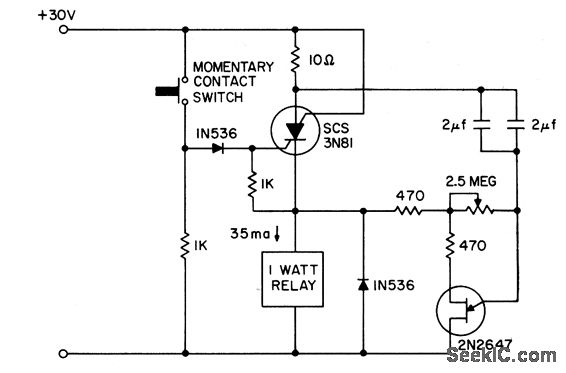

Keeps relay energized for preset time of up to 10 sec after relay is pulled in by momentarily closing switch.- Transistor Manual, Seventh Edition, General Electric Co. 1964, p 324.
