DEGLITCHER

Published:2009/7/9 23:21:00 Author:May | From:SeekIC

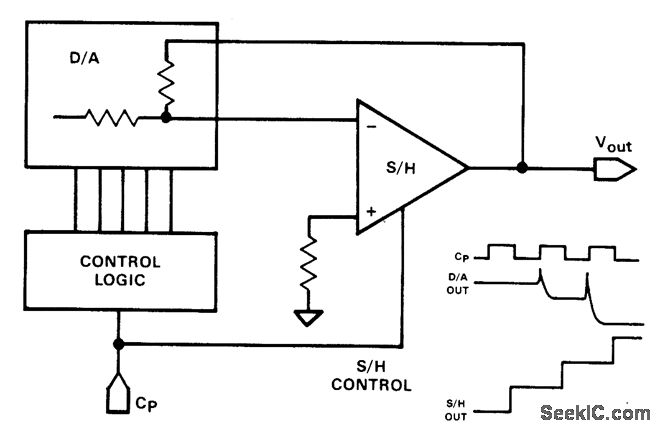

Glitch has been a universal slang expression among electronics people for an unwanted transient con-dition. In D/A converters, the word has achieved semiofficial status for an output transient, which occurs when the digital input addressed is changed. The sample/hold amplifier does double duty, serving as a buffer amplifier as well as a glitch remover, delaying the output by 1/2-clock cycle. The sample/hold can be used to remove many other types of glitches in a system. If a delayed sample pulse is required, it can be generated using a dual monostable multivibrator IC.
