DC series motor commutation circuit

Published:2012/9/13 1:37:00 Author:Ecco | Keyword: DC series , motor commutation | From:SeekIC

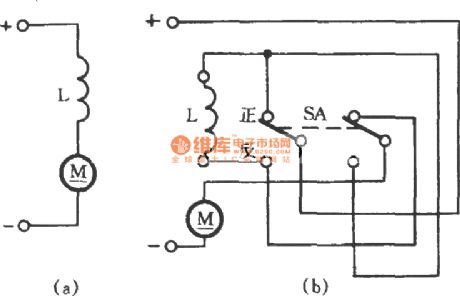

The communication method of series excitation motor is to individually change the armature current or the current direction of the excitation coil individually, then it can achieve the change of rotation direction. The circuit is shown as the figure, the figure (a) is a schematic diagram of the series excited motor, and figure (b) is a series motor commutation circuit diagram.
