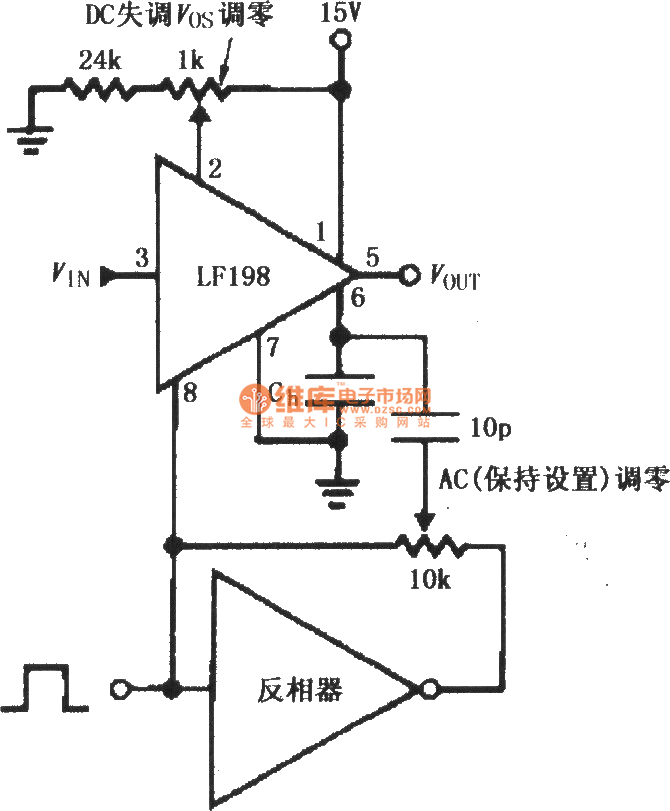

DC and AC zeroing circuit of sample maintaining amplifier LF398

Published:2012/8/15 2:05:00 Author:Ecco | Keyword: DC and AC , zeroing circuit, sample maintaining, amplifier | From:SeekIC

Adjusting 1kΩ potentiometer can makeDC offset voltage Vos be zero. In maintaining set mode, adjusting the 10kΩ potentiometer allows the AC offset voltage Vosto bezero.
