DC Throttle Circuits With Injected Pulses

Published:2013/6/7 21:31:00 Author:muriel | Keyword: DC Throttle Circuits, Injected Pulses | From:SeekIC

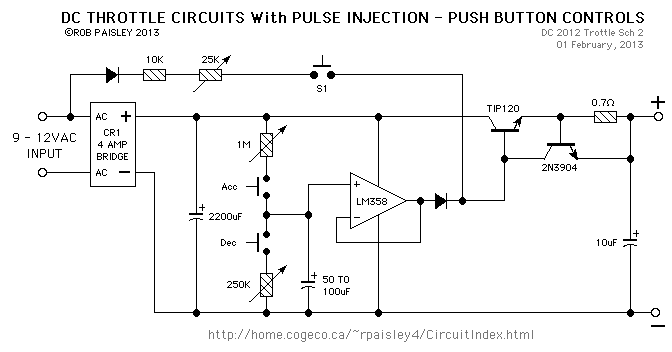

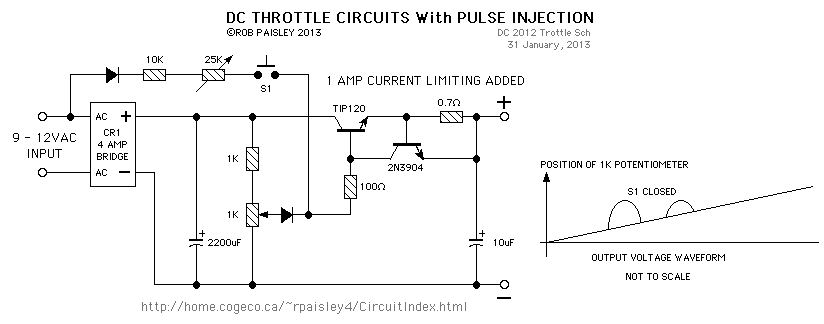

The following circuit is a straight DC version of the fullwave circuits above. A varialable level, 60Hz pulse injection scheme is also included, this could be used to boost the output voltage in difficult areas of track, used to make the locomotive creep or perhaps as a kicker when shunting. The same basic throttle as above but with push button controls.
