DC_LAMP_DIMMER

Published:2009/7/14 12:16:00 Author:May | From:SeekIC

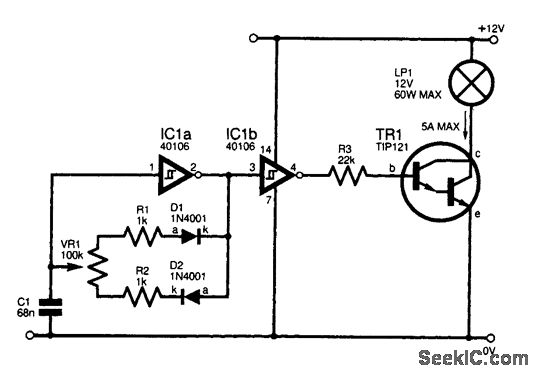

The dc lamp dimmer circuit will adjust the brightness of a dc lamp or the speed of a suitable dc motor. An oscillator is formed around Schmitt inverter IC1a, and is buffered by IC1b. This, in turn, drives TR1, which is a Darlington power transistor. The lamp LP1 forms the collector (c) load for the transistor, and this is driven at a nominal 330 Hz. The duty cycle is, however, fully variable using potentiometer VR1. Consequently, the power delivered to the load can be controlled between 5 and 95 percent, approximately. No flicker will be apparent at this frequency. The circuit consumes little power itself and is ideal for controlling car instrument panel lights.
