DC_D_C

Published:2009/7/15 2:01:00 Author:Jessie | From:SeekIC

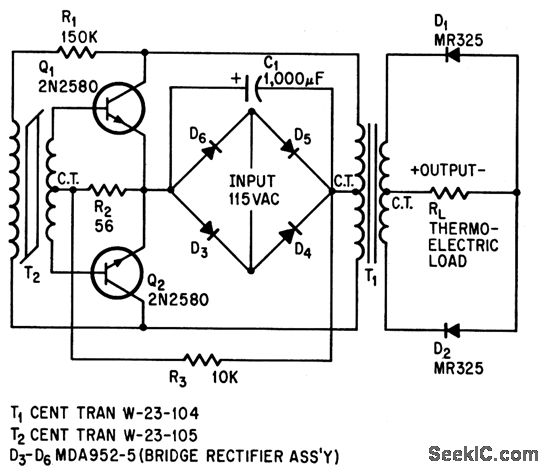

Line voltage is rectified, inverted at 18 kc, stepped down, and rectified to give 23 a at 6 v for thermoelectric heat-pump system.-A. L. Wennerberg and F. H. Schroedet, High-Current Converter is Small, Quiet, Low-Cost, Electronics, 37:30, p 41.
