DCC Bridge Mimic Circuits

Published:2013/6/21 2:41:00 Author:muriel | Keyword: DCC Bridge Mimic Circuits | From:SeekIC

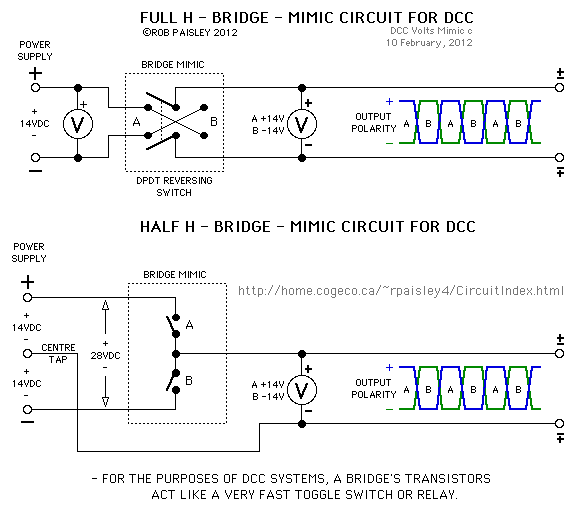

The first diagram illustrates the basic function of full and half H-Bridge circuits as used for model railroad DCC booster systems.
