Coded transmitting circuit diagram composed of TC9148

Published:2011/4/1 4:04:00 Author:Ecco | Keyword: Coded transmitting | From:SeekIC

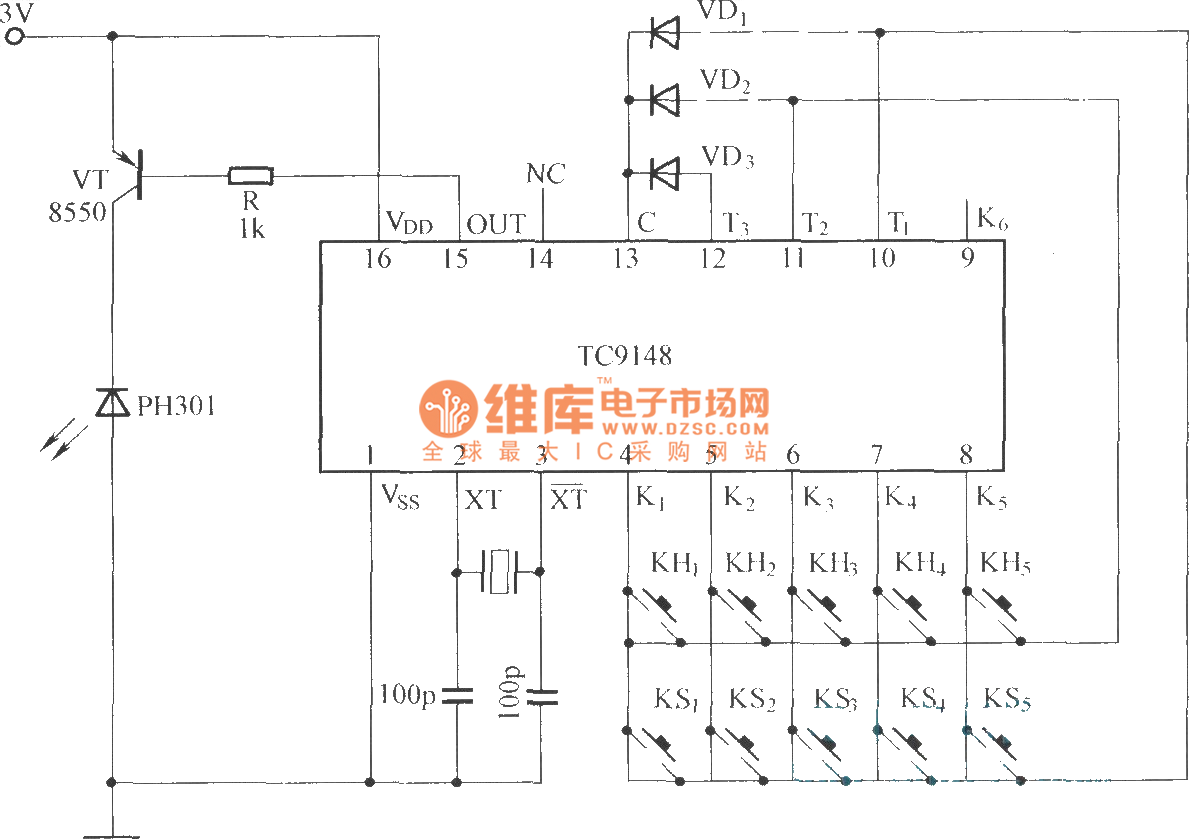

Coded transmitting circuit diagram composed of TC9148 is as below: TC91 series infrared remote controlling coded integrated circuit is a massive integrated circuit which adopts CMOS technology. And TC9148 is a coded transmitting circuit. TC9149 and TC9150 are topical empty receiving circuits. >
