Clock coupling circuit diagram(can be efficiently transmitted 5KHZ clock pulse)

Published:2011/5/13 3:38:00 Author:Ecco | Keyword: Clock coupling , efficiently , transmitted , 5KHZ , clock pulse | From:SeekIC

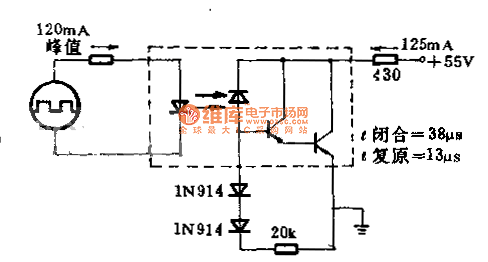

The circuit uses gallium arsenide infrared emitting diode and it is optically coupled to the silicon plane photoelectric mulriple pipe. Circuit requires insulation and it transfers 5KHz the clock pulse in high efficiency according to maximum rated voltage and current. Circuit uses photoelectric mulriple pipe which is led by the base to improve recovery time. The load is 400Ω. clock coupling circuit is shown as the chart (can be efficiently transmitted 5KHZ clock pulse).
