Basic Circuit

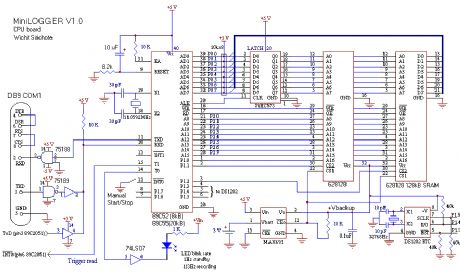

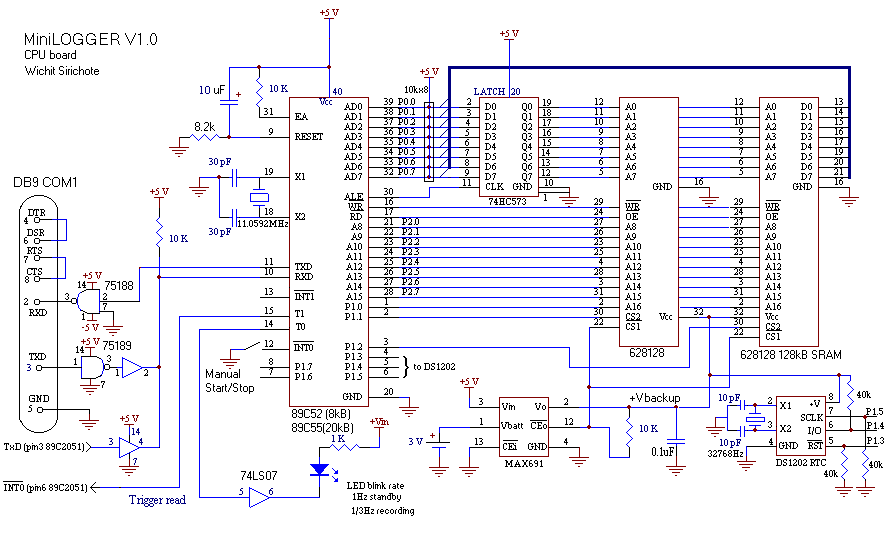

Circuit Diagram of CPU Board

Published:2013/1/29 21:17:00 Author:muriel | Keyword: CPU Board | From:SeekIC

Print this Page | Comments | Reading(3)

To evaluate my
Code:
