Carat poured signal generator circuit

Published:2011/8/6 8:04:00 Author:nelly | Keyword: Carat poured, signal, generator | From:SeekIC

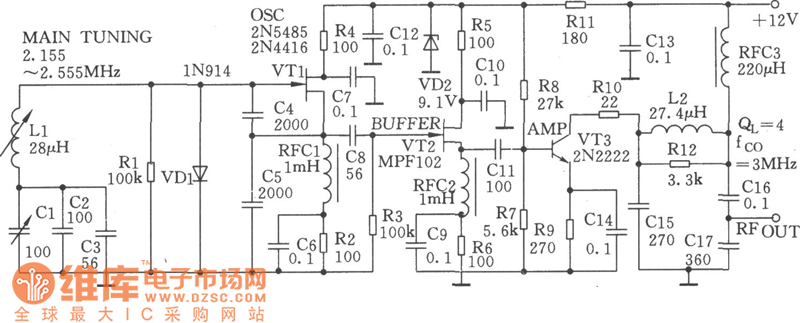

The Carat poured signal generator circuit is as shown. VTl is the variable LC oscillator formed by the typical high-stable Carat poured circuit. The capacity of the capacitance C4 and C5 is very large, and capacitance C4 and C5 can decide the feedback coefficient. The short flutter rate of drift, which is caused by the capacitance change, can be reduced by this carat poured signal generator.
