CRYSTAL_CONTROL_IMPROVES_STABILITY

Published:2009/7/15 6:02:00 Author:Jessie | From:SeekIC

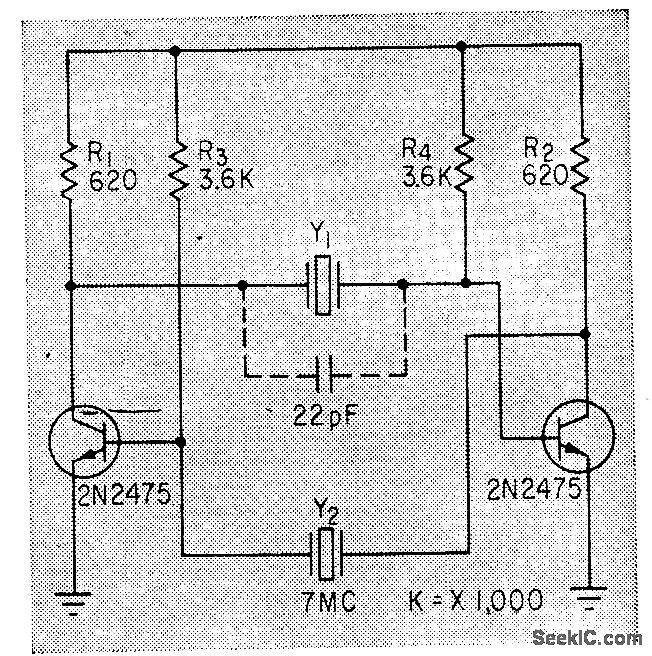

Use of 7-Mc crystal in place of feedback capacitors in conventional mvbr improves stability and waveform while still permitting operation down to 750 kc. Circuit also operates with one crystal; variable 7-47 pf capacitor in noncrystal-controlled side permits varying pulse width on this side over wide range.-H. R. Newhoff, Crystal-Controlled Multivibrator has Better Stability, Electronics, 36:15, p 60-61.
