CRYSTAL_CONTROLLED_TIMER

Published:2009/7/10 23:48:00 Author:May | From:SeekIC

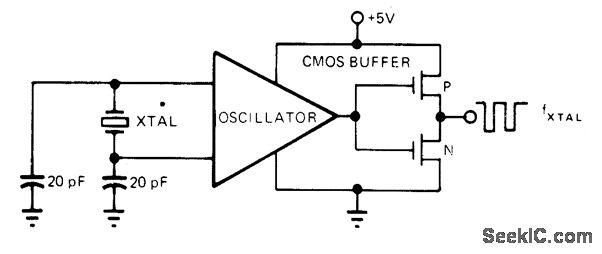

Intersil 7209 clystal oscillator provides buffered CMOS output capable of driving over five TTL loads any crystal frequency up to 10 MHz.Used in applications requiring high-accuracy buffered timingsignals for system clocks.－B.O.'Neil,IC Timers－the Old Reliable 555 Has Company,EDN Magazine, Sept．5,1977,p 89-93.
