CRYSTAL_CONTROLLED_MVBR

Published:2009/7/11 1:34:00 Author:May | From:SeekIC

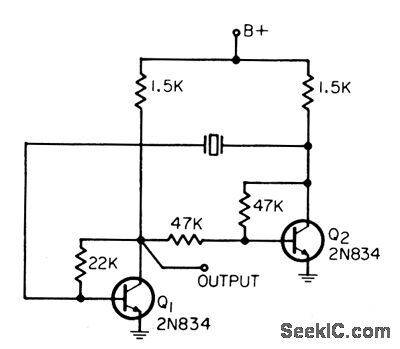

Simplicity and stability make circuit useful as system clock.Will oscillate at 1 Mc over supply voltage range of 2 to 30v.Output is rounded square wave,at any frequency from 3 kc to 10 Mc depending on crystal used.-J. Freeman, Crystal Controlled Multivibrator, EEE,13:6, p65.
