COUNT_STORAGE

Published:2009/7/13 23:27:00 Author:May | From:SeekIC

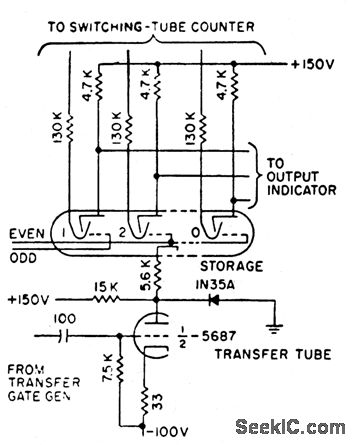

Magnetron beam-switching tube and transfer tube together serve to sample and store accumulated count and provide multioutput functions without stop-ping original count or losing input information during readout.-R. W. Wolfe, Decode Decimal Counter Speeds Printed Readout, Electronics, 31:3, p 88-90.
