COUNTING_UP_TO_100_KC

Published:2009/7/13 23:21:00 Author:May | From:SeekIC

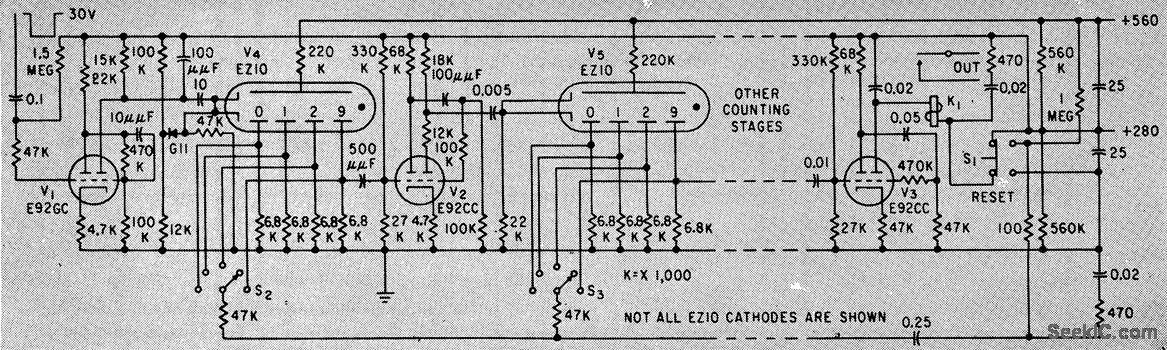

Uses miniature gas-filled decade counters that provide visual indication of count along with high reliability. Schmitt-trigger input feeds mono between counter tubes. Can produce output after desired count if counter is initially reset to complement of the desired number.-K. Apel and P. Berweger, Miniature Gas-Filled Tubes For High-Speed Counting. Electronics. 33:8,p46-47.
