CORE_FLUX_INTEGRATOR

Published:2009/7/16 4:26:00 Author:Jessie | From:SeekIC

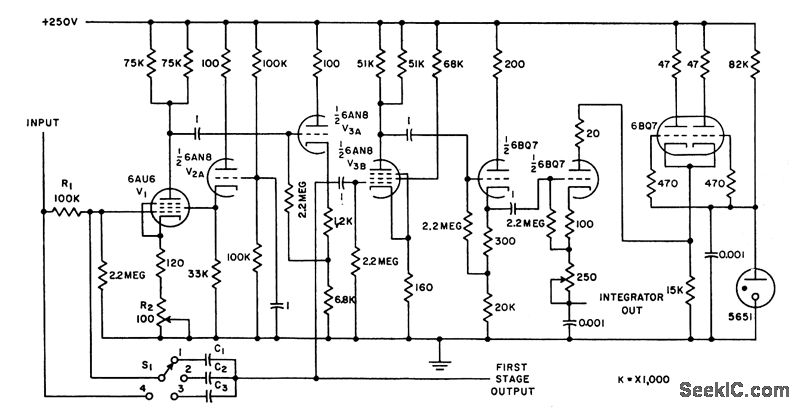

Speeds grading and matching of magnetic cores. Miller integrator measures instantaneous and peak flux in cores at 60, 400, and 1,600 cps. Design approaches ideal response throughout 480-kc bandwidth and provides dosed-loop gain of 2 at fundamental excitation frequencies.-C. E. Goodell, Integrator-Amplifier for Core Measurements, Electronics, 31;7, p 110-113.
