CONTROL_WITH_EXTERNAL_DIODE

Published:2009/6/30 22:21:00 Author:May | From:SeekIC

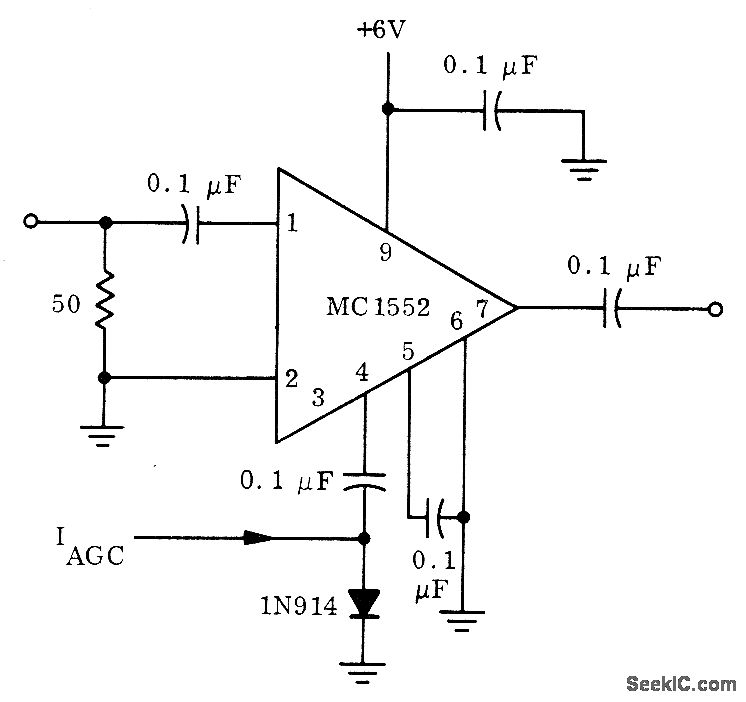

External resistances normally used with Motorola MC1552 video amplifier are replaced by 1N914 or equivalent diode so gain of amplifier is de-termined by AGO current through diode. Arrangement gives wide range of gain control, but lowest obtainable level of gain is normal unmodified gain off amplifier. Same circuit can be used with MC1553 highgain video amplifier.- A Wide Band Monolithic Video Amplifier, Motorola, Phoenix, M, 1973, AN-404 p 10.
