CONSTANT_CURRENT_REGULATOR

Published:2009/7/14 4:33:00 Author:May | From:SeekIC

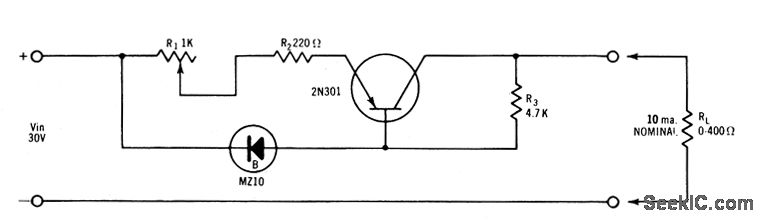

Uses transistor ad variable series resistor. Current will remain within 10% of 10 ma from short circuit up to maximum load of 400 ohms. - Zener Diode Handbook, International Rectifier Corp., 1960, p59.
