COMPLEMENTARY_TRANSISTOR_LOGIC

Published:2009/7/16 3:59:00 Author:Jessie | From:SeekIC

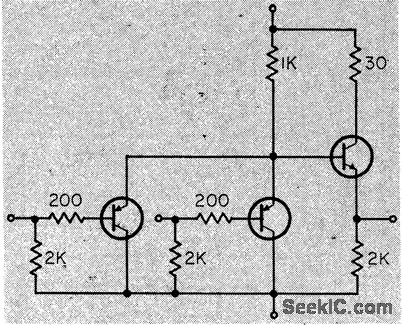

Uses both pnp and npn transistors, with pnp emitters tied together and returned through 1K resistor to positive voltage supply. Propagation delay is 3 to 5 nsec for fanouts of 1 to 10.-D. Christiansen, Logic Schemes Reviewed, EEE, 13:11, p 64-79,
