COMBINATION_GATE_AND_ONE_SHOT

Published:2009/7/16 2:12:00 Author:Jessie | From:SeekIC

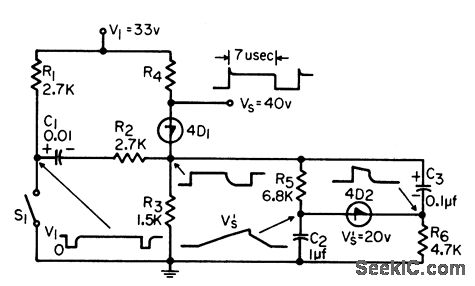

Uses two four-layer switching diodes, and draws no current from source except during gate pulse. Can also be used as one-shot. Width of pulse depends on supply voltage and R5-C2.-R. E. Amsterdam, Gate/One. Shot Uses Four-Layer Diodes, EEE, 12:12, p 58-60.
