CODING_DIGIT_CARD

Published:2009/7/14 3:27:00 Author:May | From:SeekIC

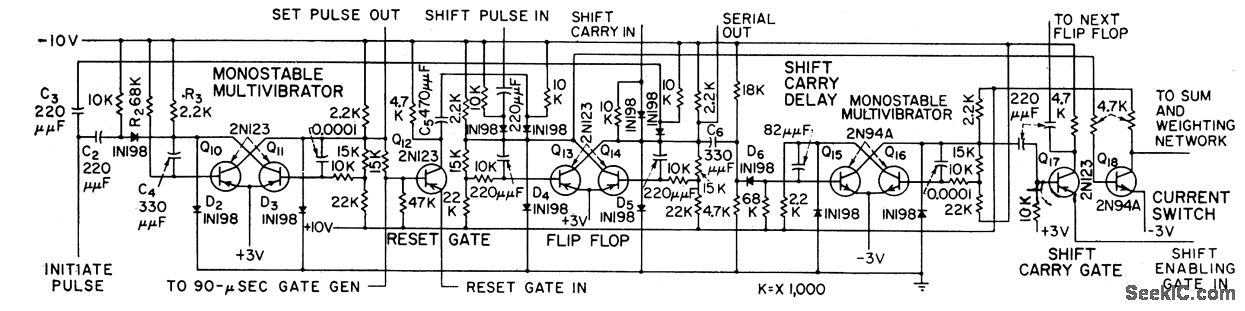

Initiate pulse starts coding in digit card of analog-digital converter and ultimately provides positive shift-carry pulse for next card. Codes inputs up to 5 v at maximum sampling rate of 5,000 inputs per second with 0.5% accuracy. Eight binary-digit result is shifted out serially at 100,000 digits per second.-W. B. Towles, Transistorized Analog-Digital Converter, Electronics,31:31, p 90－93.
